XRNP 50KA 3.6KV 7.2KV 12KV 24KV 40.5KV HRC Fuse 0.5A/0.6A/0.63A/0.8A/1A/2A/3.15A/5A/6.3A

Model Number : XRNP1 XRNP2

Place of Origin : China

MOQ : 10

Price : USD $10~35 per piece

Payment Terms : T/T

Supply Ability : 10K pieces per month

Delivery Time : 20 days

Item Name : XRNP HRC Fuse

Mounting Type : cartridge

Tube material : ceramic

Cap material : nickel plated copper

Voltage Rating : 3.6KV 7.2KV 12KV 24KV 36KV 40.5KV

Current Rating : 0.5A/0.6A/0.63A/0.8A/1A/2A/3.15A/5A/6.3A

Interrupting Capacity : 50KA

RoHS Compliant : Yes

Halogen free : Yes

Contact Now

This product can be used in indoor electrical system of ac 50HZ and rated voltage of 3.6~40.5KV for PT over-loading or short circuit protection. XRNP high voltage fuses are designed with the plug-in structure and to be inserted into the holder, which is easy for replacement.

Type	Rated Voltage(KV)	Rated Current(A)	Breaking Capacity(KA)	N.W.(Kg)
XRNP1	3.6	0.5,1,2,3.15,6.3	50	0.19
XRNP1	7.2	0.5,1,2,3.15,6.3	50	0.19
XRNP1	12, 10	0.5,1,2,3.15	50	0.22
XRNP1	24	0.5,1,2,3.15	50	0.43
XRNP1	40.5, 36	0.5,1,2,3.15	50	0.55
XRNP2	12, 10	0.5,1,2,3.15	50	1.12

XRNP 50KA 3.6KV 7.2KV 12KV 24KV 40.5KV HRC Fuse 0.5A/0.6A/0.63A/0.8A/1A/2A/3.15A/5A/6.3A

Pictures of XRNP 3.6KV 7.2KV 12KV 24KV 36KV 40.5KV HRC Fuses

XRNP 50KA 3.6KV 7.2KV 12KV 24KV 40.5KV HRC Fuse 0.5A/0.6A/0.63A/0.8A/1A/2A/3.15A/5A/6.3A

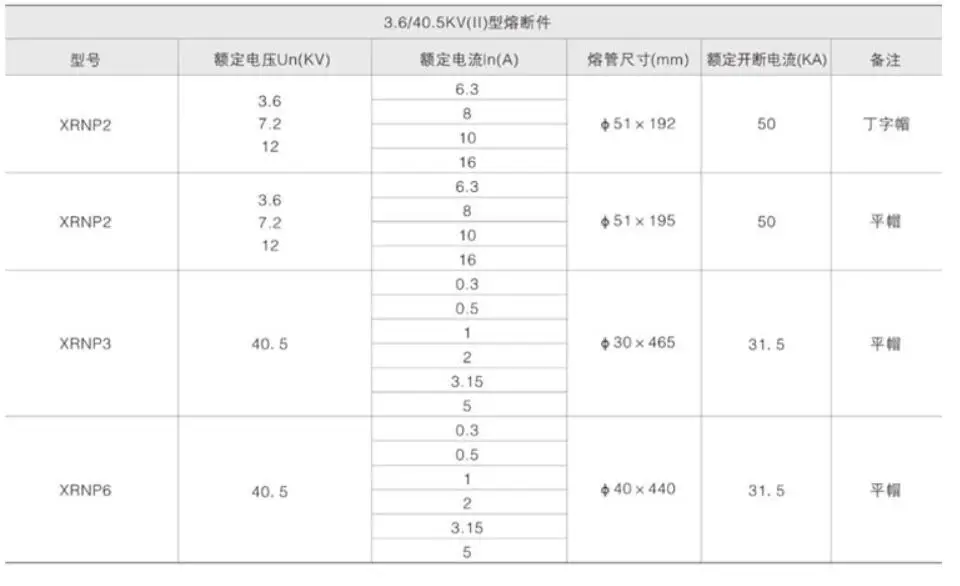

Specification:

XRNP 50KA 3.6KV 7.2KV 12KV 24KV 40.5KV HRC Fuse 0.5A/0.6A/0.63A/0.8A/1A/2A/3.15A/5A/6.3A

3.6KV 0.5A/1A/2A/3.15A/6.3A 50KA

7.2KV 0.5A/1A/2A/3.15A/6.3A 50KA

10KV 0.5A/1A/2A/3.15A 50KA

12KV 0.5A/1A/2A/3.15A 50KA

24KV 0.5A/1A/2A/3.15A 50KA

36KV 0.5A/1A/2A/3.15A 50KA

40.5KV 0.5A/1A/2A/3.15A 50KA
