MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

Name: MVSP Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V
Brand: Tianrui
Price: 1 USD

Quality MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V wholesale

Brand Name : Tianrui

Model Number : 3225 4032

Certification : ROHS/UL

Place of Origin : China

MOQ : 5000pcs

Payment Terms : 100% TT,Paypal

Supply Ability : 5000pcs every day

Delivery Time : 10 days

Operating Temperature : -40 to 125C

Maximum AC Volts : 750V

Varistor Voltage : 200V to 750V

Current Max : 1200A

Rated Power : 0.25W

Withstand Voltage : ≥2.5 KV

Contact Now

Product	MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V to 750V
Series	4032 3225
Structure	Zinc Oxide Varistor
Voltage	200V to 750V
Withstand Voltage	≥2.5 KVRMS
Operating Temperature	-40 ~ +125 ℃
Insulation Resistance	≥100 MΩ
Type	SMD
Approval	UL/ROHS

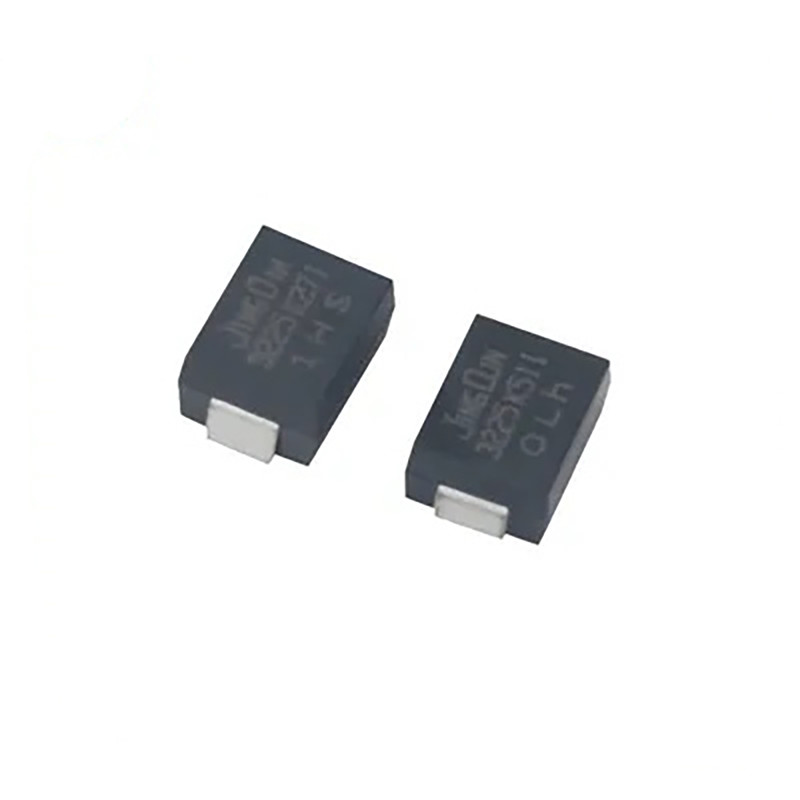

Photos of MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V to 750V

MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

Size(mm) of 3225

MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

Size(mm) of 4032

MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

Features

3225 4032 series varistors (Plastic SMD Type) is an innovative products instead of the leads acording to customers’ demands such as big size SMD components. It is widely used in LED driving power supply, communication equipment, carrier module,security equipment etc. In which reflow welding process is adopted. 3225 SMD Varistor replace 07D plug in varistor and 4032 SMD Varistor replace 10D dip varistor.

1. RoHS compliant
2. Available for SMT flow/reflow soldering
3. Low profile and space saving
4. Large capability to withstand high surge current
5. Low inductance construction with excellent response
6. Encapsulation material according to UL94-V0
7. Operating temperature range: -40°C ~ +125°C
Storage temperature range: -40°C ~ +125°C
8. Agency recognition: UL

Application
1. Power supply
2. Home appliance
3. Industrial equipment
4. Telecommunication or telephone system
